Reading and Clearing Check Engine Codes with an OBD2 Scanner
Three quick things to know before you connect an OBD2 scanner:
- A steady check engine light is usually suitable for basic code reading, but a flashing light can indicate a more urgent problem.
- The code identifies a system or fault area; it does not automatically name the failed part.
- Clearing the light erases stored codes and resets some vehicle monitors, but it does not repair the cause.
This guide walks you through the preparation, scanning, clearing, and follow-up checks so you can approach the job in the right order.
Prepare the Vehicle Before Reading a Code
Quick answer: Park safely, switch the ignition off, locate the vehicle’s OBD2 port, and have the scanner instructions available before making the connection.

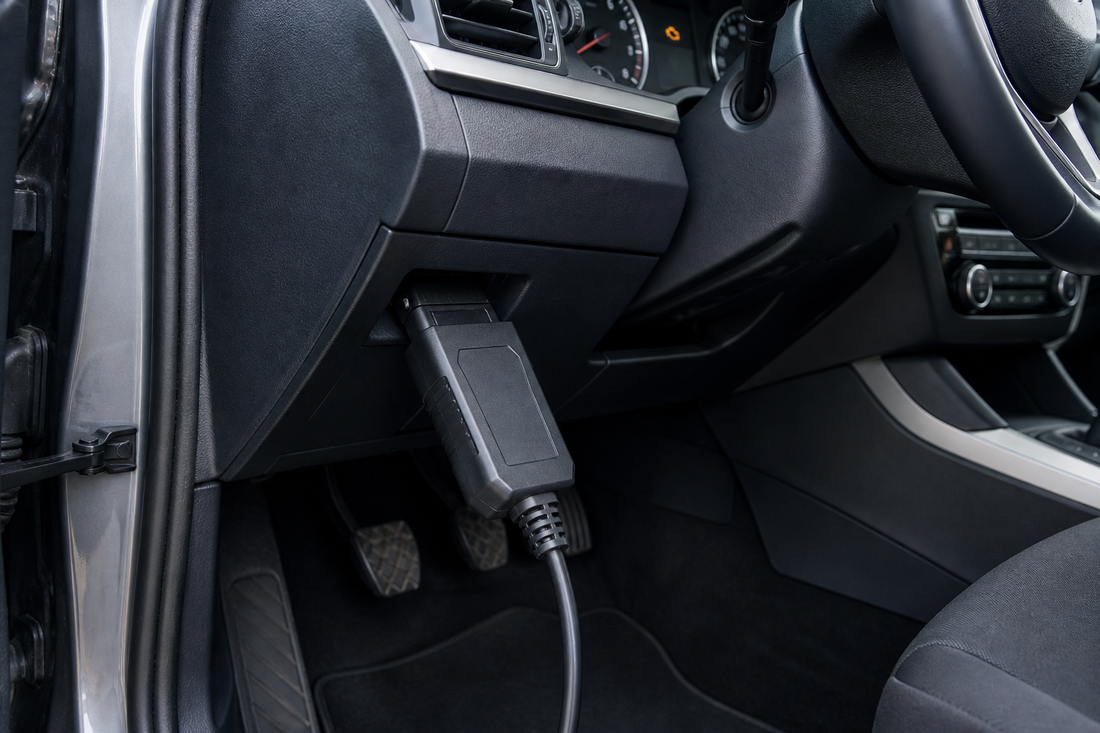

The diagnostic connector is commonly found beneath the dashboard near the steering column, although its exact position varies by vehicle. Do not force the plug into place. If the connector is difficult to see, use a flashlight and check the owner’s manual rather than pulling at nearby trim or wiring.
Preparation also means observing the warning light itself. A steady light may allow you to move the vehicle carefully to a suitable inspection location, provided the car is operating normally. A flashing light, severe shaking, major power loss, unusual smoke, overheating, or other serious symptoms calls for caution. Stop in a safe place and consider professional assistance instead of relying on a code reader alone.
Before scanning, record any recent changes. A fuel-system issue, battery replacement, jump-start, repair, or unusual driving condition may help explain why the light appeared. These details can be useful later, especially if the scanner displays more than one code.
Use this short preparation checklist:
- Vehicle parked securely with the ignition switched off
- OBD2 scanner and cable or wireless adapter ready
- OBD2 port located without disturbing wiring
- Owner’s manual available for vehicle-specific instructions
- Recent symptoms and repair work noted
- Battery power sufficient for the scan
For readers who need a more advanced diagnostic tool for additional vehicle-system work, the GEARWRENCH handheld bidirectional diagnostic tool is a separate option to evaluate according to the vehicle and task involved.
Connect the OBD2 Scanner and Retrieve the Code
With the connector located, plug the scanner in firmly and turn the ignition to the position that powers the vehicle electronics without starting the engine, unless the scanner instructions specify otherwise. The tool should power on or establish a connection. Follow its menu for options such as diagnostics, read codes, or scan vehicle.
- Connect the scanner to the OBD2 port.
- Turn the ignition on while leaving the engine off unless directed differently.
- Choose the vehicle or automatic identification option if requested.
- Select the function for reading diagnostic trouble codes.
- Wait for the scan to finish, then record every displayed code and its status.
- Turn the ignition off before disconnecting the scanner, unless the tool directs you to leave it connected.
A code may be listed as current, pending, or stored. Record the complete code, including its letter and numbers. Writing it down prevents confusion if several codes appear or if the light returns later. A basic scanner may provide only a brief description, so treat that wording as a starting point for diagnosis rather than a final repair instruction.
Do Not Treat a Code as a Parts Order
Do: Use the code to narrow the inspection. Check the related wiring, connectors, hoses, fluid conditions, and other service items identified by the vehicle manual or a reliable repair reference. Consider whether the symptoms match the code.
Don’t: Replace the named sensor or component immediately just because its name appears in the description. A code can be triggered by a wiring problem, an air or fuel issue, a connection fault, or another condition affecting the same system.
This distinction matters because an OBD2 scanner reports what the vehicle computer detected, not necessarily which physical part must be replaced. If the code is unfamiliar or the vehicle has serious symptoms, pause before clearing it. The stored information may help a qualified technician diagnose the problem.
Should You Clear the Check Engine Light?
Yes, but only after recording the codes and addressing the likely cause. Use the scanner’s erase, clear, or reset function only when you understand what will happen and have completed the appropriate inspection or repair.
After you choose the clear function, the scanner may ask for confirmation. Follow the on-screen instruction, then switch the ignition off and wait briefly before turning it back on. The warning light may go out immediately, but that result does not prove the issue is fixed. Clearing removes the stored diagnostic information and may reset readiness monitors used by the vehicle’s emissions system.
Do not clear codes simply to hide a warning before selling, inspecting, or continuing to drive a vehicle with unresolved symptoms. If the light returns after the vehicle is driven, scan it again and compare the new code with your notes. If the light stays off but the car still runs poorly, the absence of a warning does not rule out a mechanical problem.
Verify the Result and Maintain a Simple Scan Routine
Verification has two parts: confirm what the scanner reports immediately, then observe how the vehicle behaves afterward. A successful reset should be followed by a careful check for returning warnings, unusual operation, or changes in performance. Do not assume that a light remaining off means every diagnostic monitor has completed.
Check the scan status after clearing
Reconnect the scanner if needed and review the code screen or system status. Some tools show that no current codes are present while also indicating that monitors are not ready. That combination can be normal after a reset and means the vehicle may need ordinary driving under varied conditions before a complete status is available. The exact monitor behavior depends on the vehicle.
If the light returns, do not repeatedly erase it. Record the code, note when the light came back, and write down any related symptoms. A recurring code provides more useful information than a series of unexplained resets. If the warning flashes, the vehicle loses power, runs roughly, overheats, or produces other serious signs, stop treating the issue as a simple scan-and-clear task.
For maintenance, keep the scanner accessible and make a brief record whenever a warning appears: date, mileage if available, code, symptoms, and action taken. The repeatable routine is simple: observe the warning, scan and record, investigate the cause, clear only when appropriate, then verify.
