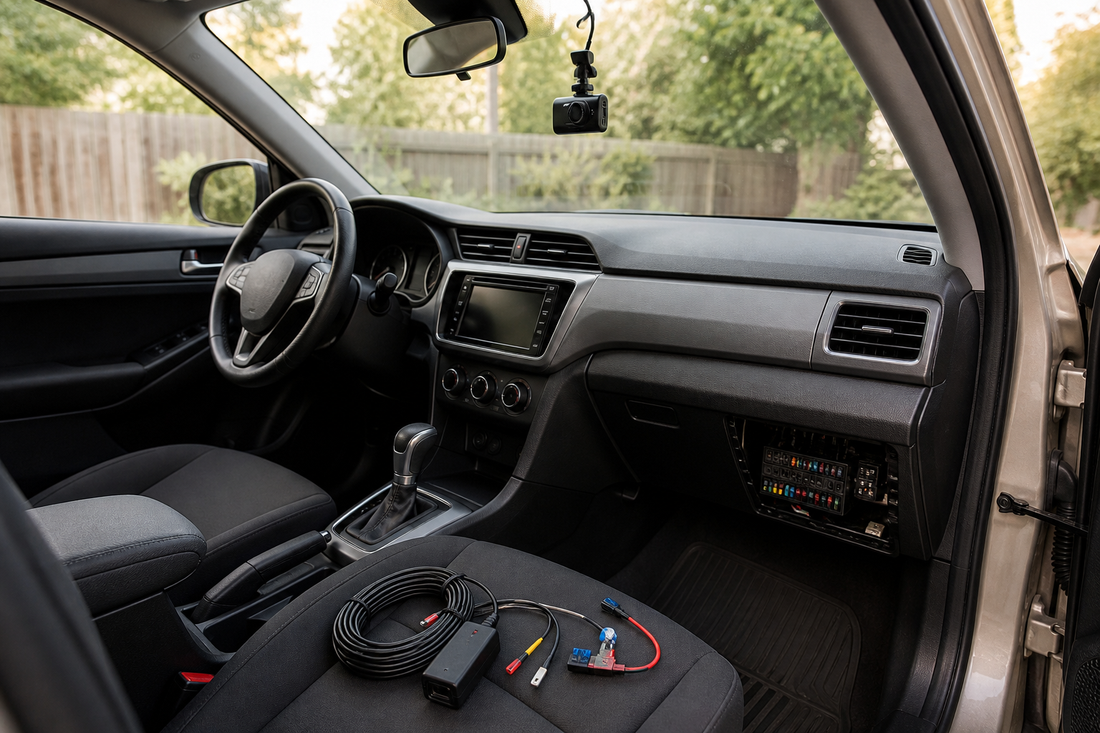

How to Hardwire a Dash Cam to the Fuse Box for Parking Mode

Hardwiring a dash cam creates a cleaner installation and can allow parking mode to operate when the ignition is off. The challenging part is choosing suitable fuses, wiring the fuse tap correctly, establishing a reliable ground, and confirming that the camera behaves properly before leaving it connected.

This guide covers what to check before touching the fuse box, how to test a circuit, how to connect the wiring, and how to verify parking-mode behavior. For the broader cable-routing process, see how to install a dash cam and hide the power cable cleanly.

Start with the fuse box, the dash cam, and the vehicle manual

A successful installation depends on three things matching: the dash cam’s hardwire kit, the vehicle’s fuse layout, and the parking-mode setup you intend to use. Check the kit instructions first. Many kits have separate wires for constant power, ignition-switched power, and ground, but labels and power-detection methods vary.

Use the vehicle manual or fuse-box diagram to identify each circuit. The fuse format may be low-profile mini, mini, micro, or another style, so the fuse tap must match the vehicle. The accessory fuse in the tap should also be appropriate for the dash cam branch rather than selected only because it fits.

Prioritize circuits that are clearly identified, accessible, and unrelated to airbags, restraint systems, engine management, braking, steering, or other safety-critical functions. The best fuse is the one that meets the electrical and functional requirements—not simply the one closest to the dashboard. A circuit may remain live unexpectedly or support equipment that should not share an accessory connection.

The fuse tap myth that causes many bad installations

Myth: a fuse tap works the same way in either direction.

Clarification: orientation affects how the added circuit is protected. A fuse slot has a supply side and a load side. If the tap is backward, the dash cam may still receive power, but the accessory branch may not be protected as intended by its separate fuse.

With the original fuse removed, use a multimeter or appropriate circuit tester to identify which contact in the slot receives power. Insert the tap so power enters through the tap’s supply side and passes through the accessory fuse before reaching the hardwire kit.

Do not replace the vehicle’s original fuse with a larger one. The original fuse protects the factory circuit; the added fuse protects the dash cam branch. Each must remain appropriate for its own circuit.

Quick answer: what connects where?

For a typical three-wire kit, connect the constant-power wire through a correctly oriented fuse tap to a circuit that remains powered when the vehicle is off. Connect the ignition or accessory wire to a circuit that turns on and off with the ignition. Attach the ground wire to clean, unpainted chassis metal.

This is only a general pattern. Follow the labels and instructions supplied with the specific kit.

How do you install and test the hardwire kit?

Work methodically, and keep the vehicle switched off while preparing the fuse box. Retain the original fuses so the factory arrangement can be restored if needed.

1. Document the fuse box. Photograph the fuse layout before removing anything. Record the position, rating, and name of each circuit you plan to test.

2. Confirm the fuse type. Compare the original fuse with the fuse tap. The blades and housing must match, and the tap should seat without force. If the kit lacks the correct adapter, obtain one rather than improvising.

3. Find constant power. Remove the candidate fuse and test both contacts with the ignition off. Confirm the result under the conditions specified by the kit instead of relying on the circuit name alone.

4. Find switched power. Test the candidate with the ignition off, then switch the vehicle to the required accessory or run position. After shutdown, wait through the vehicle’s normal accessory delay and test again. Some vehicles keep circuits powered temporarily.

5. Prepare the tap. Place the original circuit’s fuse in the position intended for the factory circuit. Put the appropriately rated accessory fuse in the separate position for the dash cam branch. If the tap is not clearly labeled, consult its instructions.

6. Attach the power wires. Connect the constant and ignition wires according to the kit instructions. Keep the connections secure and prevent exposed metal from touching nearby components. Keep wires away from sharp edges, hinges, pedals, and areas where trim could pinch them.

7. Establish the ground. Use a secure chassis bolt or ground point that contacts bare metal. Painted, loose, plastic, or poorly isolated mounting points may not provide a dependable ground. Make sure the terminal sits firmly against the chassis.

8. Test before hiding the wiring. Connect the camera and turn the ignition on. Confirm that it starts. Turn the vehicle off, close the doors, and allow the normal shutdown period to pass. Then check whether the camera enters parking mode or powers down as designed.

Test the system in the same state you expect during daily use. A camera that starts with the ignition but never enters parking mode may have incorrect power connections or settings. A camera that remains active indefinitely may indicate an unsuitable circuit, incorrect wiring, or a parking-mode setting that needs adjustment.

Constant power, switched power, or OBD: which approach fits?

Fuse-box hardwiring is not the only way to power a dash cam. Each method has a different balance of appearance, control, and installation complexity.

Choose fuse-box hardwiring when you need concealed wiring and the kit is compatible with the vehicle. Choose a simpler method when parking surveillance is unnecessary or when you cannot confidently identify a suitable fuse.

The camera works, but parking mode never starts

The likely issue is a power-state problem: both wires may be connected to circuits that behave the same way, or the ignition wire may use a circuit that remains powered after shutdown.

Re-test the constant and switched positions independently. Confirm that constant power remains available under the required conditions and that switched power changes state after shutdown. Then verify the kit’s low-voltage protection and parking-mode settings. If the behavior remains incorrect, disconnect the setup rather than leaving an uncertain connection energized while unattended.

What changes with newer vehicles and unusual fuse boxes?

Some vehicles manage accessories electronically, keep circuits active temporarily, wake after doors are opened, or use fuse panels with limited access. A quick key-off test can therefore be misleading.

Observe the complete shutdown sequence. Test with doors closed when appropriate, wait for delayed accessory power to end, and repeat the check after the vehicle has been undisturbed. If the diagram is unclear, the circuit involves safety equipment, or the fuse box has unusual electronic controls, consult vehicle service information or a qualified automotive technician.

Before replacing the trim, confirm:

• The fuse tap matches the vehicle’s fuse style.
• The original and accessory fuses are in their correct positions.
• The tap orientation was verified by testing the supply side.
• The constant and switched wires show the expected different behavior.
• The ground terminal is tight against clean chassis metal.
• The cable is clear of pedals, hinges, sharp edges, and airbag deployment areas.
• The camera starts with the ignition and changes behavior after shutdown.
• Low-voltage protection and parking-mode settings match the intended use.

Complete the installation in sequence: test the fuse positions, secure the tap, connect the ground, verify driving and parking behavior, then route and reinstall the trim. If any stage produces an unexpected result, correct it before moving forward.
