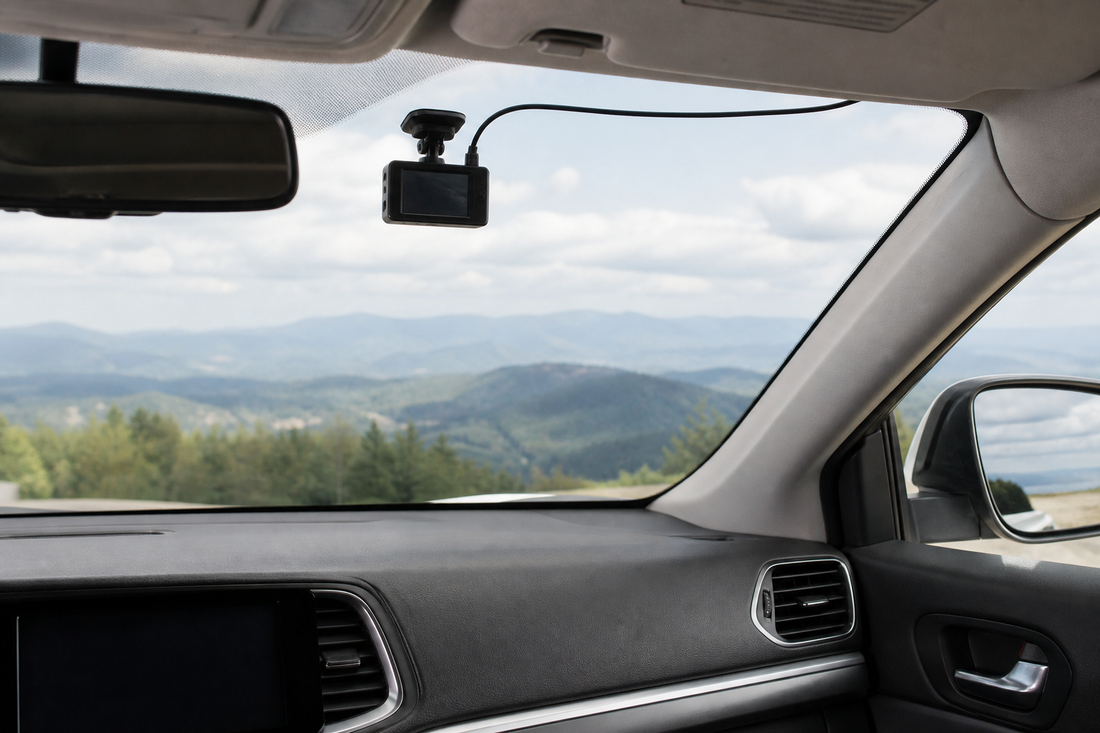

Dash cam fully installed behind a windshield with its power cable hidden neatly along the headliner and side trim

How to Install a Dash Cam and Hide the Power Cable Cleanly

Installing a dash cam involves more than attaching the camera to the windshield and plugging it in. The camera position matters, but so does the power-cable route. A poor route can leave wires across the windshield, interfere with visibility, or become pinched behind interior trim.

A clean installation starts with preparation. Choose the mounting location, select the power source, test the camera before hiding anything, and route the cable along trim that can accommodate it. The steps below explain how to hide dash cam wires without forcing panels, blocking airbags, or creating avoidable electrical problems.

Do Not Hide the Cable Before Testing the Camera

A common mistake is pressing the dash cam into its final position and immediately tucking the cable behind the headliner and pillars. If the camera does not power on, the cable is too short, or the viewing angle is wrong, the work must be undone.

Create a temporary installation first. Clean the windshield, place the camera where it has a clear forward view, connect the power cable, and run the wire loosely along the intended route. Turn the camera on and check the image from the driver’s normal seated position. Leave enough slack for the connector to enter the camera without pulling sideways.

Do not place the camera where it obstructs the driver’s view or where windshield tint, shading, or built-in equipment interferes with the lens. Windshield-device restrictions vary by location, so check applicable local rules before fixing the final position. Once the view and power connection are confirmed, concealing the cable becomes a routing task rather than a guessing exercise.

Choose the Power Method Before Routing the Wire

Dash cam being tested with its power cable loosely routed before final concealment

There are three common approaches: an accessory outlet, an OBD power adapter, or a fuse-tap hardwire kit. A standard car charger is usually the simplest removable arrangement. An OBD adapter can keep the connection away from the center console when the port is accessible. A fuse tap creates a more integrated installation but requires careful circuit identification and electrical work.

Match the power source to how you use the vehicle

If you only want recording while driving, an accessory outlet may be sufficient. It is useful for leased vehicles, shared cars, or anyone who does not want to alter the fuse panel.

Parking surveillance changes the decision. A camera intended to remain active while parked needs a power arrangement designed for that purpose, and the dash cam must support the relevant parking feature. An unsuitable always-powered connection can affect the vehicle’s battery. Do not assume that every outlet or fuse behaves the same way when the ignition is off.

For a compatible setup using the diagnostic port, an USB-C OBD hardwire kit for dash cams is one possible route. Its supplied product information describes 12–24V to 5V/3A conversion, an ACC or 24-hour surveillance use case, and low-voltage protection. Confirm that the connector, dash cam input, vehicle port, and intended operating mode match before installation.

Fuse-tap wiring is more vehicle-specific. The fuse-tap style must match the vehicle’s fuse type, and the selected circuit must suit the intended behavior. A Micro 3 fuse tap adapter kit is designed for Micro 3 blade-style fuse applications and includes 10A fuses according to its product information. That does not make it suitable for every vehicle; inspect the existing fuse format and follow the vehicle and kit instructions.

A Visible Wire Usually Points to a Routing Problem

If the dash cam works but the cable hangs across the windshield or drops toward the console, the issue is often a poor starting point, an unsuitable trim path, or too much exposed cable near the camera.

A clean route normally follows existing edges and gaps rather than crossing open glass. Check where the cable leaves the camera, reaches the headliner, travels down the windshield-side trim, and enters the dashboard. If it makes a sharp bend, pulls on the camera mount, or presses tightly against a panel, reposition it before closing the trim.

Use this installation process:

  1. Prepare the surfaces. Park safely, switch off the vehicle, and clean the windshield area with a suitable glass cleaner. Let it dry, and remove dust from the trim edge.
  2. Position the camera temporarily. Place it high enough for a useful forward view without blocking the driver’s sightline. Keep the lens level and check the framing from the normal driving position.
  3. Test the power connection. Connect the camera using the selected charger, OBD adapter, or hardwire arrangement. Confirm that it starts as expected and that the cable reaches without being stretched.
  4. Plan the route loosely. Follow the top edge of the windshield, then the appropriate side trim toward the outlet or power module. Leave gentle slack at connection points instead of tight coils.
  5. Seat the cable gradually. Use a trim tool or your fingers to open a small gap, then press the cable into the edge. Do not force a panel over a thick connector or pinch the wire against a sharp edge.
  6. Secure only where needed. Small clips or vehicle-compatible cable guides can keep the wire from falling out. Avoid adhesive that interferes with trim removal or is exposed to excessive heat.
  7. Test again before finishing. Start the vehicle, turn the camera on, and check that the image remains stable in its final route. Look for warning lights, loose panels, or rattling sounds.

The pillar area requires special care. Many vehicles contain airbags behind or near the side-pillar trim. Do not route a cable across an airbag, tie it to an airbag cover, or pack it into a deployment path. Interior layouts vary, so consult the owner’s manual or a qualified installer if you cannot identify a route away from restraint equipment.

Pinching can also cause failure. A cable may work while exposed and stop working after the trim is replaced because the panel compresses the wire, the connector is forced into a narrow space, or the cable bends repeatedly at the camera. If the camera cuts out after concealment, inspect the last section that was changed first.

For a camera with a USB-C input, connector orientation and cable length also matter. The 2.5K WiFi front dash cam listing identifies a USB-C connection context along with a front-facing camera, app control, and a stated 256GB maximum card capacity. Follow the specific camera’s instructions for the correct cable, memory card requirements, and operating functions before securing the connection.

Set Priorities: Visibility, Safety, Convenience, and Reversibility

Dash cam cable routed carefully beside side trim without crossing the pillar or being pinched

A tidy installation is not automatically a good installation. The first priority is an unobstructed driving view. Next, make sure the cable does not interfere with airbags, pedals, steering controls, or moving trim. Appearance should be considered only after those requirements are satisfied.

Every method involves trade-offs. The shortest route may leave a visible section near the outlet. The most hidden route may require more trim removal. A removable charger preserves the vehicle’s original wiring but may occupy the outlet. A hardwire setup can look more integrated but requires attention to fuse type, circuit behavior, grounding, and the kit instructions.

For most first installations, choose the least complicated method that meets your goal. Use an accessory outlet for driving-only recording and easy removal. Consider an OBD adapter when its connection and operating modes suit the vehicle. Choose a fuse tap only when you understand the fuse layout or can obtain appropriate installation help.

Can You Hide a Dash Cam Wire Without Removing the Headliner?

Usually, you can route much of the cable along the headliner edge and windshield-side trim without removing the entire headliner. The wire only needs a shallow, controlled path where the trim already has room.

“Tucked away” does not mean pushed as far as possible. If the cable meets resistance, stop and look for another route. Do not use metal tools aggressively against glass, wiring, or trim, and do not force a panel that is designed to release in a particular direction. A small visible section is preferable to damaged trim or a compressed cable.

Compare Dash Cam Installation Options

Accessory outlet, OBD adapter, and fuse-tap connection options for powering a dash cam

Accessory outlet: The easiest option to connect, remove, and troubleshoot. The trade-off is a visible plug or occupied outlet.

OBD power adapter: Keeps the connection away from the center console and may support different ignition or parking-use arrangements, depending on the adapter and vehicle. The OBD port may already be occupied or unsuitable for the intended use.

Fuse-tap hardwire kit: Can create an integrated cable route and leave the accessory outlet available. The trade-offs include vehicle-specific fuse compatibility, more involved installation, and the need to select and connect circuits correctly.

The right choice is the one that supports your recording schedule without adding unnecessary complexity.

Small Installation Details Reveal Whether the Setup Is Finished

After hiding the cable, inspect the installation from the driver’s seat and from outside the vehicle. A wire that is invisible from one angle may still cross the driver’s view or hang near the mirror.

Check the camera image for excessive dashboard, sky, or windshield reflections. Then check the cable for tension when the doors, sun visors, and trim panels move. If the wire shifts, add a suitable retention point rather than tightening it around a moving component. If a panel no longer sits flush, remove the cable from that gap and find a less crowded path.

Finally, verify that the camera powers on under the expected vehicle conditions, the memory card is installed according to the camera’s instructions, and no controls or warning indicators were disturbed. A correct position, stable power source, and safe cable route are the foundation of the installation.
