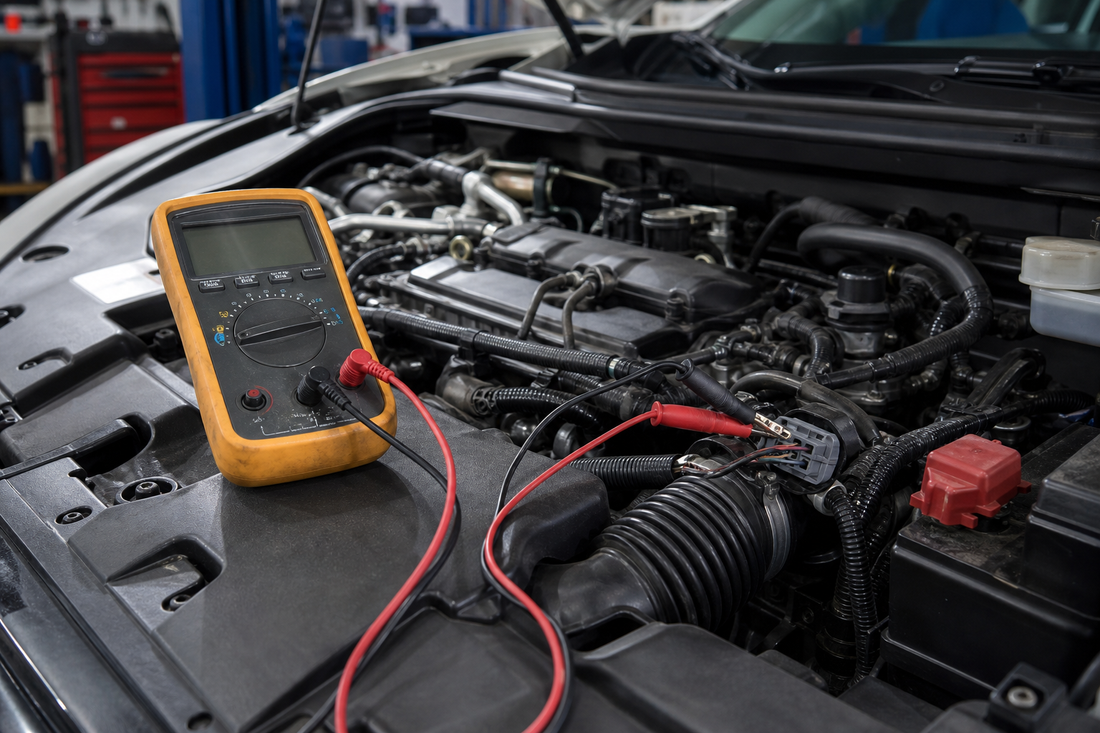

How to Test Automotive Sensors and Wiring with a Multimeter
A first-time check-engine-light diagnosis often starts with a code reader and ends with a guess: replace the sensor named by the code. A multimeter provides a better next step. It can help determine whether the sensor has power, a usable ground, an intact circuit, and a signal that changes as expected.
The process is not simply touching two probes to a connector. You must select the correct test mode, identify the terminals, test under the right conditions, and interpret the result in context. This guide explains how to test automotive sensors and wiring before spending money on parts that may not be the actual cause. For the larger decision-making process around check-engine codes, see Diagnosing Check Engine Codes Without Replacing Parts Unnecessarily.
Start With the Circuit’s Most Important Priorities
The first priority is safety, followed by identification, and only then measurement. Confirm which sensor and circuit the diagnostic code refers to, locate a wiring diagram or reliable service information, and identify the connector terminals before placing a probe anywhere. A sensor connector may contain power, ground, signal, and reference circuits that look similar but require different tests.
A quick resistance check may reveal an open sensor or broken wire, but it cannot prove that the circuit works while energized. Similarly, voltage at a disconnected connector may show that power is present without showing whether the circuit can deliver it under load.
For a dependable diagnosis, begin with visual inspection and connector condition, verify power and ground, check signal behavior, and reserve continuity or resistance testing for de-energized circuits. This sequence usually provides more useful information than replacing the component named in the code.
A Multimeter Does Not Automatically Identify a Bad Sensor
A sensor cannot usually be declared good or bad from one resistance reading. Some sensors are assessed by resistance, while others produce a changing voltage, switch a reference voltage, or communicate through a circuit that cannot be judged with a simple ohmmeter test.
Match the test to the circuit’s operating principle. Use voltage mode for power, ground quality, and live signal checks. Use resistance or continuity mode only when the circuit is powered down and the service information supports that test. A normal reading in the wrong mode can still lead to an incorrect conclusion.
When a Sensor Code Appears, Diagnose the Circuit Before the Part
A code for a temperature, pressure, position, oxygen, or other sensor may describe an electrical condition rather than a failed component. A low signal, high signal, or circuit fault can result from a missing reference voltage, weak ground, damaged wiring, corrosion, a short to power, or a poor connection.
Start by examining the harness from the sensor to its next connection point. Look for insulation rubbed through against brackets, wiring stretched near moving components, oil or coolant contamination, bent terminals, loose locks, and poor previous repairs. A clean-looking connector can still have a loose terminal or excessive resistance.
Use the wiring diagram to identify the circuit roles. With the ignition in the required position and the sensor connected or disconnected as specified, measure the supply and reference circuits against a known-good ground. Then measure the sensor ground against battery negative or another verified ground point. A voltage reading on a ground circuit indicates unwanted resistance somewhere in that path, especially while the circuit is operating.
If power and ground are correct, move to the signal. The most useful signal test is often dynamic rather than static. Observe whether the voltage changes as the sensor input changes, such as temperature, pressure, throttle position, or engine speed. The expected behavior depends on the vehicle and sensor design, so use service information rather than applying one universal voltage rule.
When a reading is abnormal, test the same circuit at the sensor connector and, when access allows, at the control-module connector. If the result changes between those points, the wiring or connection between them deserves attention. If it remains abnormal at both points, the fault may be closer to the shared supply, ground, module, or sensor.
Which Multimeter Test Should You Use First?
Use a voltage test to determine whether a live circuit is receiving power or producing a signal. Use a voltage-drop test when the circuit shows voltage but the component appears underpowered. Use resistance or continuity only when the circuit is disconnected and de-energized and you need to check for an open path or unintended connection.
For a basic live-circuit sequence:
- Set the meter to the appropriate DC voltage range and confirm the leads are in the correct ports.
- Connect the black probe to a verified ground. Use the red probe to check the supply, reference, or signal terminal.
- Compare the reading with the vehicle’s wiring information and the required operating condition.
- Move the black probe to the circuit or sensor ground when checking ground quality instead of relying only on chassis ground.
- Gently move the harness and connector while watching for an abrupt change.
A continuity beep only indicates that the meter detects a low-resistance path under its test conditions. It does not prove that the wire can carry current, that the terminal remains secure during vibration, or that the circuit is free from intermittent contact. Voltage-drop and movement tests provide more information for those questions.
Do the Test That Matches the Circuit—and Avoid the Test That Can Damage It
Do: turn the vehicle off and disconnect the relevant connector before measuring resistance. Confirm the meter’s function, keep the probes in the correct sockets, and use back-probing methods that preserve the connector seal whenever possible. Compare readings at more than one point when separating a component fault from a harness fault.
Do not: place an ohmmeter across an energized circuit. Resistance mode sends a small test current through the circuit, and applying it to a powered circuit can produce misleading readings or damage sensitive electronics. Do not bridge adjacent terminals, force a large probe into a connector, or pierce insulation without a suitable repair plan.
Ground testing requires special care. A ground may look acceptable with the circuit inactive but fail when current flows. Measure voltage between the sensor ground and battery negative while the circuit operates, using the vehicle’s required conditions. A measurable difference suggests resistance in the ground path. Follow the wiring toward its ground point, connector, splice, or control module before condemning the sensor.
Continuity testing is useful for finding a completely open wire or confirming that two points are connected when they should be. It is not a complete test for a short, high-resistance connection, or intermittent fault. If the wire passes continuity but the sensor loses power during operation, look for voltage drop, terminal tension, harness movement, or a heat-related fault.
Multimeter Checklist for Sensor and Wiring Tests
Use this checklist before recording a result:
- Identify the exact circuit: Confirm the sensor, connector, terminal numbers, and expected function from service information.
- Inspect before measuring: Check for damaged insulation, contamination, loose terminals, pulled wires, and poor repairs.
- Choose the correct mode: Use voltage on live circuits and resistance or continuity only on de-energized circuits.
- Verify the reference point: A poor ground reference can make every voltage reading misleading.
- Test under the right condition: Some signals exist only with the ignition on, engine running, or sensor input changing.
- Check loaded behavior: A circuit that reads correctly at rest may fail when current flows or the harness moves.
- Record location and condition: Note probe placement and whether the connector was connected, moving, hot, or cold.
A single number without its test condition is difficult to evaluate. The same circuit can produce different readings depending on whether the sensor is connected, the engine is running, or the harness is being disturbed.
Intermittent Electrical Faults Usually Require a Different Mindset
An intermittent wiring fault is not necessarily absent because the meter reads normally for a moment. Try to reproduce the condition, observe the circuit while it occurs, and narrow down the movement or temperature area that changes the reading. Gentle harness manipulation, connector inspection, and voltage-drop testing can reveal faults that a stationary continuity test misses.
When the fault cannot be reproduced safely or the circuit requires specialized procedures, stop short of guessing. A wiring diagram, manufacturer test procedure, or advanced diagnostic equipment may be necessary. A useful multimeter result may not confirm a failed part; it may show which section of the circuit still needs investigation.
Final Steps Before Replacing a Component
Save the original code and operating conditions, identify the circuit, inspect the harness, verify power and ground, test the signal under the correct condition, and isolate any abnormal reading to the sensor, connector, wiring, or control-module side. Repair the confirmed fault, clear the code according to the vehicle’s procedure, and verify whether the original symptom returns. This keeps the multimeter focused on evidence instead of turning it into a reason to replace parts at random.
