How to Use an Automotive Oscilloscope to Test Sensor Signals and Wiring
An automotive oscilloscope makes electrical faults visible over time. To use one correctly, connect the right probe at the right point, set suitable voltage and time scales, capture a stable reference waveform, and compare it with the signal while the fault occurs. This can reveal dropouts, noise, distortion, missing pulses, and wiring interruptions that a multimeter’s single reading may miss.
A multimeter remains useful for voltage, resistance, continuity, and voltage-drop checks. An oscilloscope adds the missing dimension: timing. For a refresher on foundational tests, see how to test automotive sensors and wiring with a multimeter before moving to waveform analysis.
Choose the Right Oscilloscope Setup for the Circuit
Start with the circuit, not the oscilloscope menu. Identify whether the signal is an analog sensor output, digital square wave, inductive pulse, frequency signal, or pulse-width-modulated control signal. Each type requires a different time scale and interpretation. A slowly changing analog signal needs a different view than a crankshaft position signal with closely spaced pulses.
Check the vehicle service information for the expected signal behavior, test location, and operating conditions. The reference may be a voltage range, repeating pattern, switching event, or relationship between two signals. Do not assume a waveform is faulty because it differs from a generic example for another vehicle.
Probe location also matters. Measuring at the sensor shows whether the sensor is producing a signal. Measuring at the control module shows whether that signal survives the connector, harness, grounds, and splice points. If the signal is correct at the sensor but distorted or absent at the module, investigate the wiring before replacing the sensor.

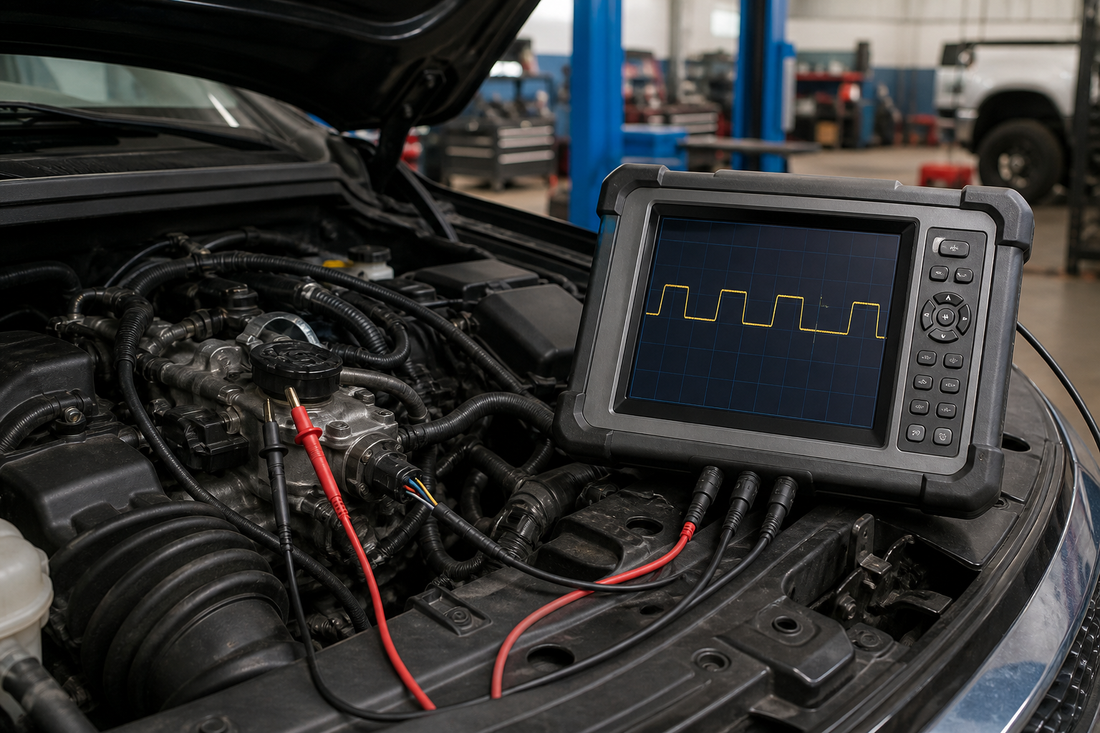

Use a suitable automotive probe and connect the scope ground to a reliable circuit ground. Keep the lead away from vibration, heat, and moving components. Back-probing is often less disruptive than disconnecting a connector, but the probe must not spread terminals or create an intermittent fault.
Identify circuits requiring special procedures before connecting. Airbag systems, hybrid and electric vehicle high-voltage circuits, ignition systems, and other high-energy circuits may require specifically rated equipment and methods. If the scope or probe is not rated for the circuit, do not improvise.
Configure the Scope Around Three Priorities
Set the instrument in this order: protect the circuit, make the signal visible, then capture the event that matters.
- Voltage scale: Set it wide enough to include the full signal without clipping, then narrow it enough to reveal small changes.
- Time scale: Choose a view showing the relevant event, such as a complete sensor cycle, a group of pulses, or the moment a fault appears.
- Trigger: Use a stable voltage or edge trigger for repeating signals. For an intermittent event, a single capture or specific trigger condition may be more useful than a scrolling display.
Automatic settings are convenient for an initial view, but they may hide a brief dropout or continuously recenter a changing signal. Begin with automatic setup, establish a usable trace, and then take control of the scale and trigger before drawing conclusions.
Read the Waveform Before Calling the Sensor Faulty
Observe the signal under the condition that matters: cold start, cranking, idle, acceleration, load, vibration, or a specific temperature. A waveform that looks normal at idle may change when the harness moves or when the sensor reaches the condition that triggers the complaint.
Assess analog sensor signals for smoothness, range, and response to a controlled change. A flat section, sudden spike, unexplained gap, or erratic movement can involve the sensor, reference supply, ground, connector, or signal wire. The scope shows behavior, but it does not identify the failed part by itself. Compare the waveform with the sensor’s operating principle and the vehicle’s service information.
Digital signals are judged mainly by consistent switching, timing, and pulse shape. Look for missing pulses, extra transitions, uneven spacing, or changes when the harness is moved. A clean voltage level does not prove that the timing information is correct.
Variable-reluctance or inductive sensors may produce greater amplitude as speed increases. The important question may be whether the pulses remain evenly timed and repeatable, not whether every pulse reaches the same height. Hall-effect and other powered digital sensors require attention to supply, ground, and switching behavior. A missing output can result from any of those areas.
PWM signals require two observations: switching frequency and the proportion of time the signal remains high or low. A meter may show an acceptable average value while the duty cycle changes incorrectly or the signal occasionally stops switching. Confirm that the waveform is stable before relying on an automatic measurement.
Compare related channels when possible. Placing a sensor signal beside a reference pulse can reveal timing drift or a missing relationship that is invisible on one trace. Keep both channels synchronized and capture them under the same operating condition.
Maintain a Reliable Test Signal During Diagnosis
Many apparent waveform problems come from the test setup. A loose ground, poor probe contact, or cable routed across an ignition component can add noise or create a false dropout. Verify the physical measurement before interpreting the trace.
- Confirm the ground: Secure the scope ground at a known-good point and gently move the lead while watching the display.
- Inspect probe contact: Make sure the tip contacts the intended circuit without shorting adjacent terminals.
- Secure cables: Keep leads away from belts, fans, hot exhaust parts, and areas where they can be pulled during a road test.
- Record conditions: Note engine speed, temperature, load, and probe locations.
- Capture a reference: Save a clean waveform before performing a wiggle test or changing the operating condition.
- Repeat the event: Check any one-time pattern again under the same conditions before condemning a part.
These steps help distinguish a vehicle fault from a measurement fault. Stable connections are especially important for intermittent problems because connecting equipment can temporarily restore the circuit.
Use a Do-and-Don’t Method for Intermittent Faults
Do change one condition at a time. Move a harness section, flex a connector, operate a switch, or reproduce vibration while watching the waveform. If several actions occur together, the result cannot be tied to a specific location.
Don’t rely on continuity alone. A wire can pass a stationary continuity check and still lose contact when pulled, heated, vibrated, or loaded. An oscilloscope can show the signal disappearing as the physical condition changes.
Do test at both ends of the circuit. If the signal changes at the sensor and control module together, examine the sensor or its supply. If it changes at only one end, compare the intervening wiring, grounds, terminals, and connectors.
Don’t confuse electrical noise with a failed component. First verify the probe ground, routing, connector fit, and reference supply. If possible, compare the disturbance with another circuit or channel. Noise present on several related circuits may have a shared cause.
Do use a trigger that captures the failure. For a brief dropout, trigger when the signal crosses an unexpected level. If the fault has no predictable trigger, use a longer recording, repeat the driving condition carefully, and save useful captures.
Repair or Replace Only After the Waveform Points to the Cause
Use the captured evidence to separate a failed component from a circuit problem. Do not replace a sensor merely because its signal is abnormal at the control module. First determine whether its supply and ground are stable, then compare the output at the sensor and module.
- Save the abnormal waveform and note the exact operating condition.
- Repeat the test with the probe secured and ground verified.
- Measure the same signal at a second access point, such as the sensor and control-module connectors.
- Inspect terminals, splices, grounds, and harness sections associated with any difference.
- Repair the confirmed wiring or terminal fault, then repeat the capture.
- Replace the sensor or related component only when the evidence remains consistent with an internal fault.
- Clear related diagnostic codes according to the vehicle procedure and verify the repair under the original fault condition.
The final capture should show that the signal is stable where it needs to be, not simply that a replacement part has been installed. Begin each diagnosis with a saved reference waveform and a secure ground connection before changing parts. That habit makes every later comparison more useful.
