Testing Crankshaft and Camshaft Position Sensors with an Automotive Oscilloscope

Many beginners assume that a crankshaft or camshaft sensor should produce one standard waveform. That is the first source of confusion. Sensor technology, trigger-wheel design, engine control strategy, and variable valve timing can all change what appears on the oscilloscope.

The reliable approach is to inspect each signal on its own, then compare the crankshaft and camshaft signals together. That comparison can help separate a defective sensor from wiring interference, a missing power or ground supply, or a mechanical timing problem. If you need a broader explanation of scope controls and basic automotive waveform setup, review the automotive oscilloscope testing guide before beginning.

What a Good Crankshaft and Camshaft Test Must Prove

Quick answer: A useful test should answer three separate questions:

• Is the individual sensor producing a repeatable signal?
• Does the signal reach the engine control module without distortion or interruption?
• Do the crankshaft and camshaft signals maintain the expected relationship?

A sensor can pass a basic resistance check and still produce a poor signal under cranking or running conditions. Resistance testing is static. An oscilloscope shows the signal while the reluctor wheel or trigger target is actually moving.

Crankshaft position sensors generally provide the primary engine-speed and position reference. Camshaft sensors identify camshaft position and help the control system determine the engine cycle. Their electrical patterns differ according to design:

• Variable-reluctance sensors: These commonly create an alternating waveform whose amplitude and shape change with speed, air gap, and the passing trigger features.
• Hall-effect or other digital sensors: These commonly switch between voltage levels as a target passes. The power supply, ground, pull-up arrangement, and signal circuit all affect the displayed result.

These descriptions are useful starting points, not universal pass/fail templates. A missing-tooth crank wheel may create a distinctive gap in the pattern. A camshaft target may create one transition, several transitions, or a coded sequence. The correct reference is the vehicle’s service information or a known-good pattern for the same engine configuration.

Probe placement also matters. At the sensor connector, you are testing the sensor and its immediate circuit. At the engine control module connector, you are testing what the module receives. A waveform that is clean at the sensor but corrupted at the module points toward wiring, connector, shielding, or ground-reference trouble. A poor waveform at both locations shifts attention toward the sensor, target wheel, air gap, supply, or mechanical movement.

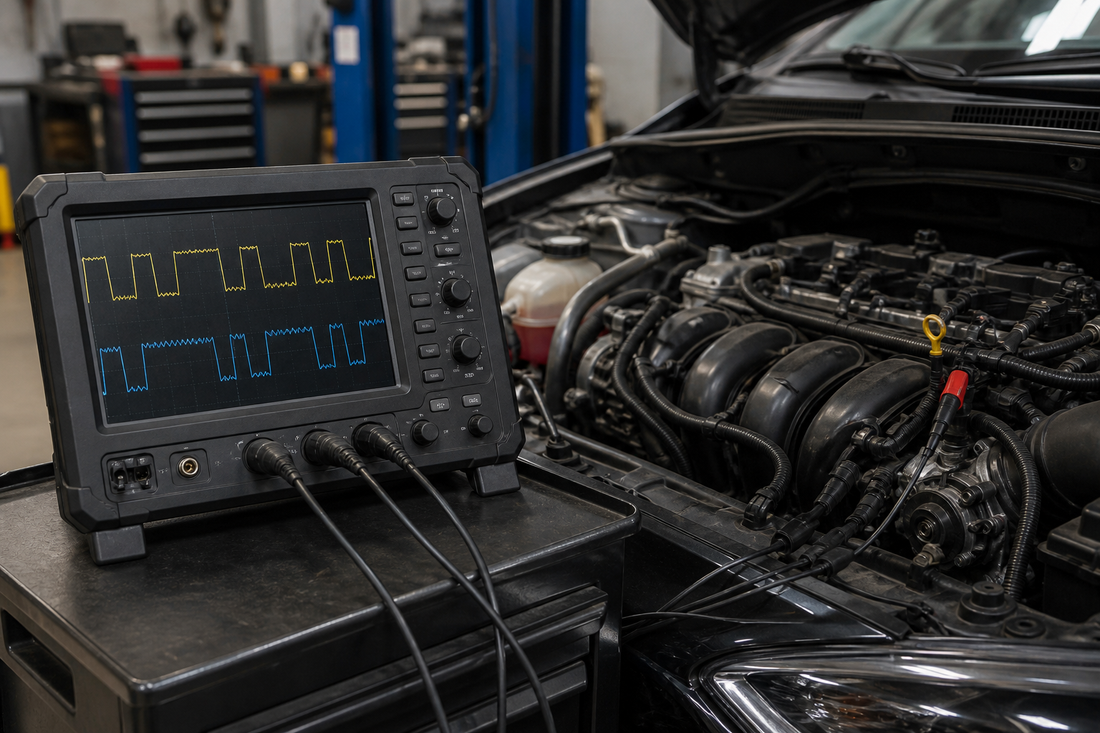

Basic Setup: Capture Both Signals in a Controlled Test

Use a two-channel setup when possible. Keep the channels connected to the same reference point and follow the vehicle manufacturer’s precautions for back-probing. Avoid shorting adjacent terminals, and secure the leads away from belts, fans, and hot surfaces.

1. Identify the crankshaft and camshaft sensor type, wiring terminals, and expected circuit arrangement from reliable service information.
2. Connect one channel to the crankshaft signal and the other to the camshaft signal. Connect the scope reference correctly for the circuit being tested.
3. Set a time base that shows several crankshaft cycles and at least one complete camshaft pattern. Begin with a broad view, then zoom in after the relationship is visible.
4. Use an appropriate voltage scale for each channel. Do not assume both sensors use the same signal range or polarity.
5. Capture the signals during cranking if the engine will not start, then capture them at idle or another relevant operating condition if it starts safely.
6. Repeat the capture if the fault is intermittent. Save a known-good-looking section and a fault-condition section for comparison.

Trigger from the crankshaft channel when possible because it normally provides the more repetitive reference. If the display drifts, adjust the trigger level, slope, and time position rather than changing the sensor circuit.

The Myth of the “Perfect” Sensor Waveform

Myth: A crankshaft or camshaft sensor is defective whenever its waveform is not a perfectly even square wave or smooth sine wave.

Clarification: The expected appearance depends on the sensor and target design. A variable-reluctance signal may change amplitude as engine speed changes. A digital signal may have sharp transitions but still show different duty-cycle behavior because of the target pattern. A camshaft waveform can look irregular by design if its trigger wheel contains uneven windows or multiple features.

Irregularity becomes more meaningful when it repeats at the same engine position, disappears when the harness is moved, or conflicts with the expected target pattern. Look for dropouts, extra transitions, unstable high or low levels, excessive electrical noise, and changes that occur only during vibration or temperature changes.

For a practical diagnosis, compare the signal with its circuit conditions:

• A digital signal with an unstable supply or ground should not be judged from the signal line alone.
• A variable-reluctance signal with reduced amplitude during cranking may require inspection of air gap, sensor position, target-wheel condition, and circuit continuity.
• A clean sensor signal that becomes distorted farther along the harness directs attention away from the sensing element and toward the circuit between the test points.

The useful question is not “Does this look like a textbook waveform?” It is “Does this signal repeat correctly, remain electrically supported, and maintain the expected relationship with the other position signal?”

Can Crankshaft and Camshaft Correlation Confirm a Timing Problem?

Yes, correlation testing can provide strong evidence of a relative timing problem, but it does not replace the vehicle-specific reference procedure. Overlay the crankshaft and camshaft signals and compare the position of their key transitions or pattern features with the manufacturer’s expected relationship.

A correlation check is valuable because both signals are generated from engine movement. If the camshaft pattern is consistently shifted relative to the crankshaft pattern, possible causes include mechanical timing change, incorrect installation, chain or belt movement, a damaged trigger feature, or a sensor mounting issue. The exact cause cannot be selected from the overlay alone.

Variable valve timing adds an important limitation. Some engines intentionally change camshaft position while operating. A cam signal that moves relative to the crankshaft may be normal at one operating condition and incorrect at another. Compare the capture with the specified engine state, commanded actuator position, and any available scan-tool data.

Correlation is most useful when the pattern is stable and repeatable. Capture more than one cycle and check whether the shift remains consistent. A fixed, repeatable displacement suggests a relationship issue. A sudden dropout, isolated disturbance, or changing position may point instead to a sensor, wiring, trigger-wheel, actuator, or control problem.

Separating Sensor, Wiring, and Mechanical Faults

Once the signals are captured, classify the fault by location rather than replacing parts immediately.

• Suspect the sensor or target area when the waveform is already incorrect at the sensor connector, especially if the supply and ground are present and the defect follows engine speed or position.
• Suspect wiring or connectors when the sensor-side waveform is clean but the module-side waveform has dropouts, noise, altered voltage levels, or missing transitions. A controlled harness movement during capture can help reveal an intermittent open or poor connection.
• Suspect mechanical timing or target alignment when both signals are electrically clean but their relationship is consistently wrong compared with the vehicle-specific reference.
• Suspect a supply or ground problem when a digital sensor’s signal changes along with its supply or reference, or when the ground relationship is unstable under cranking and load.

Do not overlook basic visual and mechanical checks. Inspect the connector for damage or contamination, confirm that the sensor is seated correctly, and check for a damaged trigger wheel or inappropriate air gap where applicable. A scope trace tells you what the circuit did; it does not automatically identify which physical component caused it.

Use the most direct next test. If the waveform is wrong at the sensor, inspect the sensor circuit and target. If it is good at the sensor but bad at the control module, test the harness. If both are good but correlation is wrong, follow the mechanical timing and variable-valve-timing procedures for that engine.

Beginner recap: Capture crank and cam signals together, verify each circuit independently, and compare their relationship against vehicle-specific information. A clean correlation pattern supports the sensor circuit; a distorted signal points toward electrical or sensing faults; a clean but misplaced relationship raises the question of mechanical timing.
